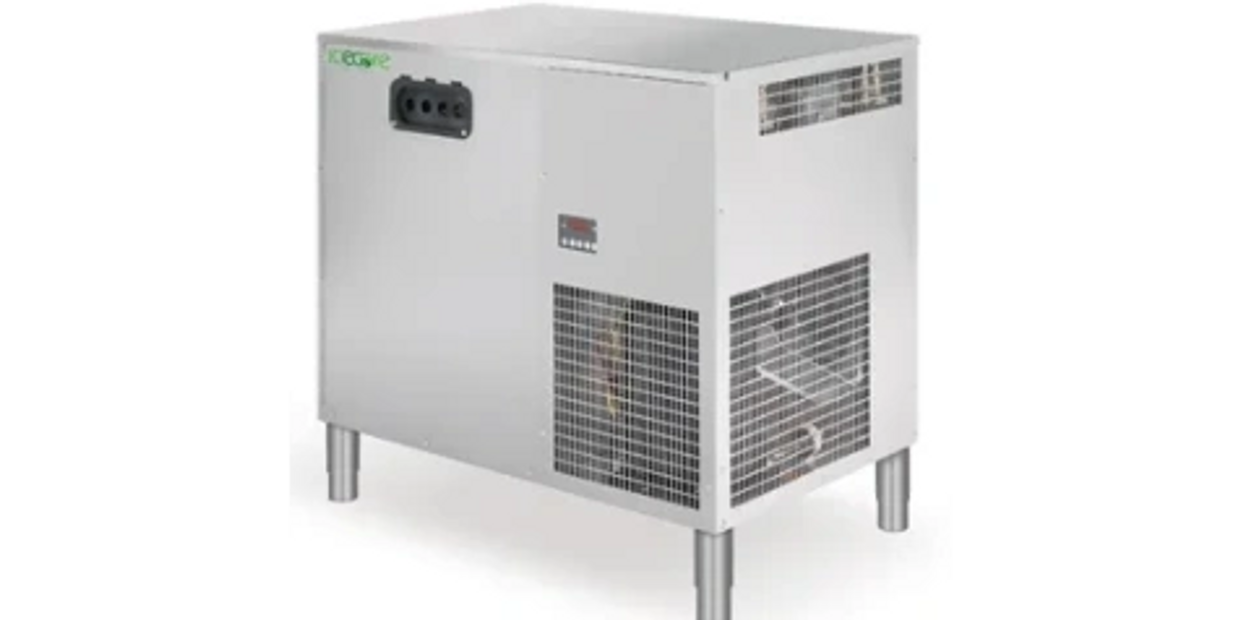

Multiplex - Icecore Remote Refrigeration

---

Recirculation system
Remote recirculation system keeps carbonated water and syrup chilled from the location of the refrigeration unit to beverage dispensers.

Energy savings
Icecore Chillers use up to 30% less energy than previous models.
Patent-pending control software monitors demand and reduces low-demand energy consumption.

Reliability
Magnetic-drive circulation pump eliminates the pump seal (number one reliability issue on remote chillers).

Water
All water used for cooling drinks is recycled with virtually no wastewater; reduces water and sewage expenses.

Ice Consumption
Reduced ice consumption compared to coldplate systems.

Cabinet
Durable, easy to clean stainless steel cabinet.

Space
Reduced counter space need compared to cold plate systems.

Refrigerant
Icecore 44G and 50G feature environmentally friendly R-404A refrigerant.
Icecore 44HC features HFC-free R290 refrigerant (check with local codes before ordering Icecore 44HC).

Minimum Circuit Amps
208-230/60/1 - 21
208-230/50/1 - 20

Maximum Breaker Size
30

Minimum Circuit Amps
208-230/60/3 - 30
208-230/50/3 - 15

Maximum Breaker Size
208-230/60/3 - 30
208-230/50/3 - 20

Leg Height
6" (15.2 cm)
- Optional Leg Kit (00761810)

Drain Connection A
12" (30.5 cm)

Drain Connection B
6" (15.2 cm)

Ice Bank Size
140 lbs (54.43 kgs)

Condenser (Self-contained)
Air or Water-Cooled or Remote

Refrigerant
Icecore 44HC has natural, HFC-free R-290 (propane) refrigerant to further reduce its overall environment impact. Check local regulations for R-290 acceptance BEFORE ordering the Icecore 44HC.
